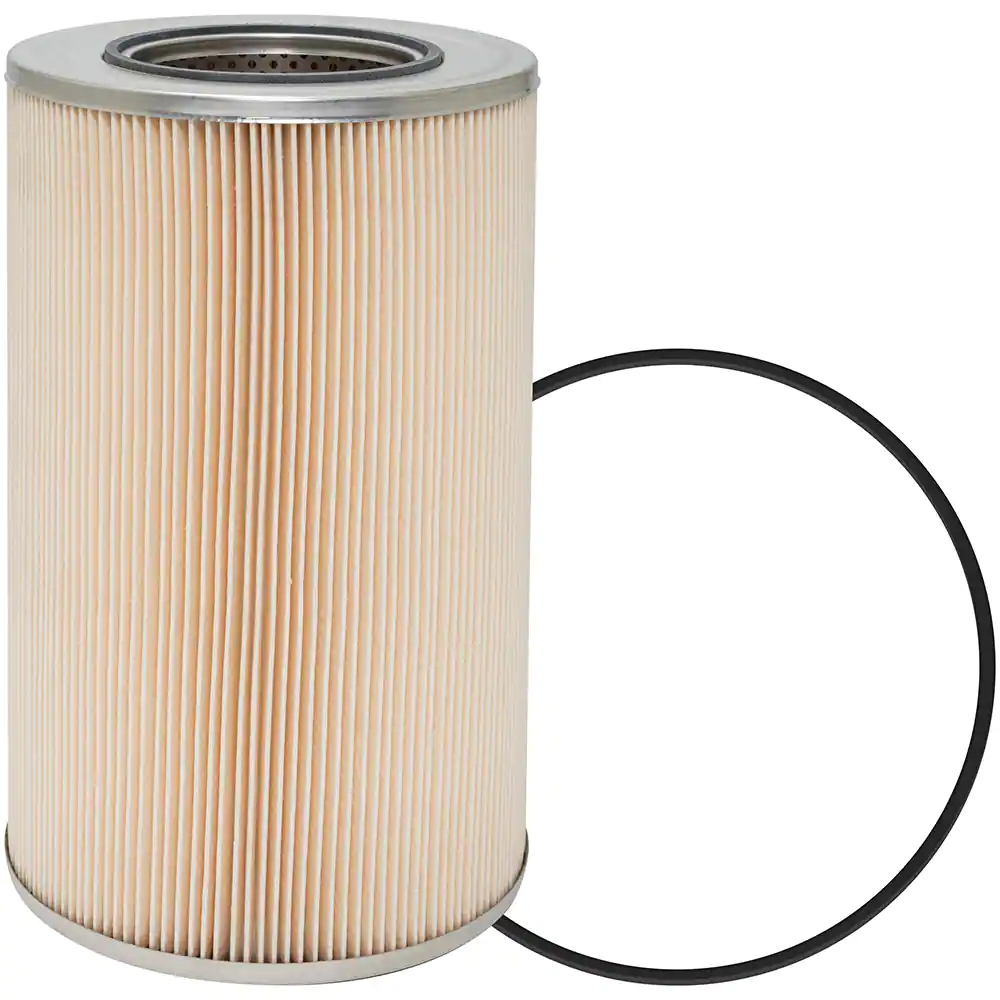

Baldwin 301-W Fuel Filter for Dahl Housings

Description

Baldwin 301-W Fuel Filter for Dahl Housings

What is Baldwin 301-W (301W) Fuel Filter?

DAHL fuel filters efficiently remove most water and solid contaminants from diesel fuel before it reaches pumps or injectors, thus prolonging parts life and reducing unscheduled downtime. DAHL’s functional dual-chamber, three-stage diesel fuel filter/water separators provide efficient suction side water separation and contaminant filtration.

Technical Specifications of Baldwin 301-W (301W)

Thread: 0
Product Type: DAHL Fuel Element
Outside Diameter: 6 1/16 (154.0)
Inside Diameter: 1 15/32 (37.3) & 3 1/4 (82.6)
Length: 9 11/16 (246.1)
Includes: A. Gasket: [1] Included; F. Gasket: 200-15A; O-Ring: [1] Attached
Micron Rating: 3 Nominal; 9 Absolute
Application: DAHL 300 Series Fuel Filter/Water Separator Units
Absolute Micron: 9
Application: Diesel fuel particulate filtration and fuel-water separation
Brand: Hastings
Contains: -
Division: Engine Mobile Aftermarket
For Fluid Type: Fuel
For Use With: DAHL 300 Series Fuel Filter/Water Separator Units
Height: 47 inch, 1193.8 mm
Includes: [1] Attached A Gskt, 200-15A F Gskt, [1] Attached O-Ring
Inside Diameter: 3 1/4 inch, 82.6 mm
Length: 9 11/16 inch, 246.1 mm
Industry: Oil & Gas
Outside Diameter: 6 1/16 inch, 154 mm
Perinch: 2 NPT
Product Type: DAHL Fuel Element
Substance: Diesel, bio-diesel blends up to B-20 and gasoline
Technology: Filtration
Thread Size: -
Width: 28 1/2, 723.9 mm
UPC: 791440036987

About Dahl Fuel Filters

The key is the unique DAHL-patented depressurizer cone which spreads the fuel flow. With more area to flow over, greater separation of water and dirt from the fuel is achieved. DAHL diesel fuel filter/water separators have less mechanical flow resistance than other separators because the fuel only changes direction twice. The DAHL unit removes virtually 100 percent of the water and most of the contaminants from the diesel fuel.
DAHL fuel filters are designed to meet or exceed OE performance. They provide the protection your equipment needs for optimal performance and to maintain warranty coverage.
Features/Benefits:
• DAHL fuel filters are available in a variety of efficiencies for flow rates from 20 to 3840 GPH.
• Die cast aluminum
• Impact-resistant large transparent bowl
• Element service life is several times longer than conventional fuel filters
• Easy to install, service, and clean
• Positive air elimination
• Advanced spring design assures positive element seal
• Less mechanical resistance because of streamlined flow path
• Baffle system is designed to stop emulsification and disperse trapped air
• Ball check valve to stop reverse flow
• Six series specifically designed to fit diesel engines of various capacities

Applications:
• Diesel fuel particulate filtration
• Fuel-water separation

Markets:
• Marine
• Mining
• Oil and gas
• Construction
• Automotive
• Heavy-duty on-highway transportation
• Agriculture
• Generators
• Locomotive
• Fuel storage tanks

Alternatives of Baldwin 301-W

4ZMW7 GRAINGER
301-W HASTINGS PREMIUM FILTERS

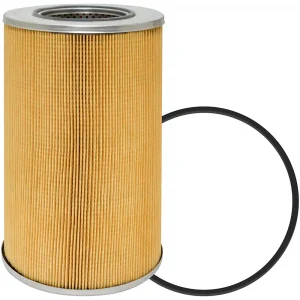

See the Baldwin Dahl 301-30 & 301 Filter
