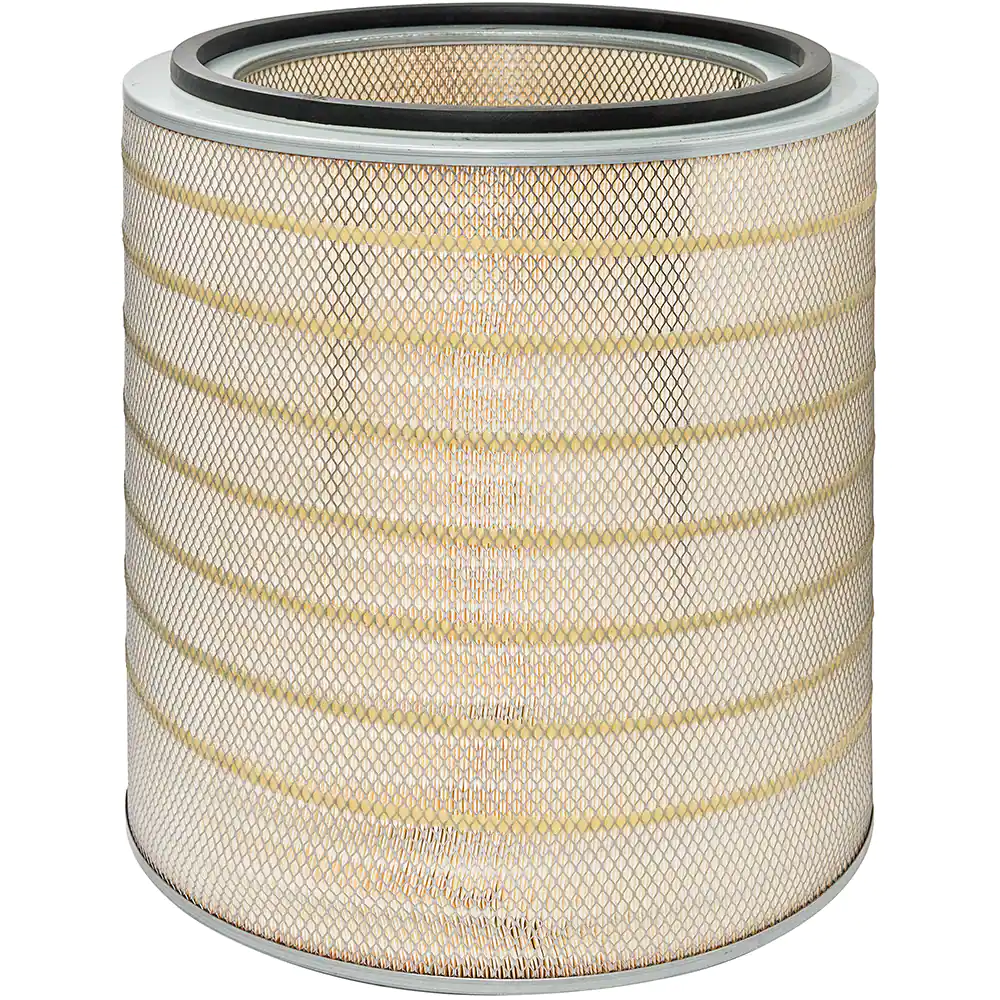

Baldwin PA3633 Air Filter (CAT 1059741)

Description

Baldwin PA3633 Air Filter (CAT 1059741)

What is the product Baldwin PA3633

Baldwin PA3633 is an air filter produced for use with Caterpillar (CAT) engine model 3516. This aftermarket product produced by Baldwin Filter is a cheaper option to the original part sold by Caterpillar (CAT). The Baldwin PA3633 should be used with the outer foam protective sheath PA3633 FOAM. The Baldwin product is a cross reference for CATERPILLAR 1059741, 1059742, 109741 & 4W5452.

Technical Specification of Baldwin PA3633

Inside Diameter (mm): 395.3 (One End)
Replaces: Caterpillar 4W5452
Outside Diameter (inch): 22
Product Type: Air Element
Length (inch): 24 3/4
Fits: Caterpillar Generators
Inside Diameter (inch): 15 9/16 (One End)
Length (mm): 628.7
Outside Diameter (mm): 558.8
Application: Engine air intake
Brand: Hastings
For Fluid Type: Air
Filter Efficiency Rating: 99.97
For Use With: Caterpillar Generators, PA3633 FOAM
Includes: (1) Attached A Gskt
Inside Diameter: 15 9/16 (One End) inch, 395.3 (One End) mm
Length: 24 3/4 inch, 628.7 mm
Industry: Power Generation
Outside Diameter: 22 inch, 558.8 mm
Product Type: Air Element
Series or Model Replaced: Caterpillar 4W5452
Substance: Filters engine air at intake to prevent contaminants from reaching the combustion chamber.
UPC: 791440042605

Cross reference of Baldwin PA3633

94793 BIG A FILTER
109741 CATERPILLAR
1059742 CATERPILLAR
4W5452 CATERPILLAR
1059741 CATERPILLAR
88793 CARQUEST
P531950 DONALDSON
P529552 DONALDSON
4XEL7 GRAINGER
PA3633** HASTINGS PREMIUM FILTERS
6793 NAPA GOLD
46793 WIX
546793 WIX
