Description

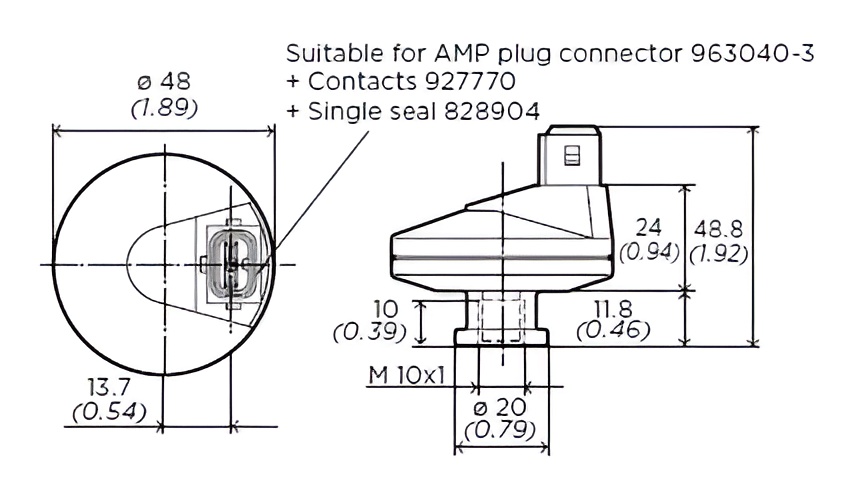

Electronic Service Indicator / Switch for AMP plug connector 963040-3 Pt.# 3903570802
ELECTRICAL MONITORING OF THE LEVEL OF ACCUMULATED DIRT
- 35mBar
- 3.5 kpa
- M10 x 1 Thread
See pages 146 -147 in the Mann + Hummel Air Cleaner pdf catalogue
Service Switch Advantages
- Continuous monitoring
- Insensitive to dust and moisture
- Reduction of potential damage with non-essential maintenance
- No readjustment of the switching point necessary
- Switch accuracy independent of component tolerances
SPECIFICATIONS
- Electronic signal when admitted differential pressure has been reached (clean air outlet to environment)
- Electronic signal processing possible
- Enclosed contact insert
- Pressure-dependent (not mechanical)
- Snap element (core element)
- Spring contacts not affected to contact erosion
- Material: PA6-GF30
- Switching pressure (negative pressure): 35 mbar to 80 mbar (3.5 kPa to 8.0 kPa)
- Max. switching capacity: 6W/24V DC (ohmic load, Umax = 24 V, Imax = 0.25 A)
- Different connection threads and connector versions available
