Mann + Hummel EuroPiclon 200 2-4.5 Air Filter Housing 4520092911

Description

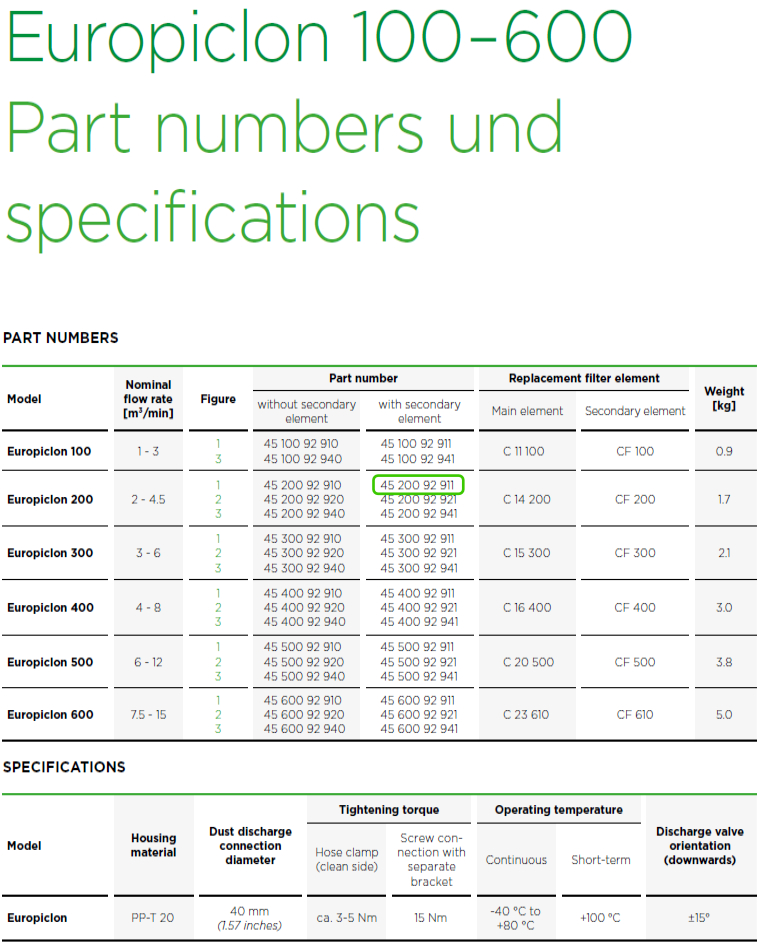

EuroPiclon 200 2-4.5 (Part No. 4520092911) Product Specifications

The EuroPiclon from MANN+HUMMEL is a variable modular system with an extensive range of accessories. These characteristics have made the successful Europiclon a proven intake air cleaner for all machines and devices which are used in environments with medium to high dust loads.

Elements used in this EuroPiclon Housing

Main element C 14 200
Secondary element = CF 200
Raw Air Inlet Position = 1
See pages 90 to 103 in the Mann Air Filter Catalogue

Product Details

• • • Comes with secondary element
    • Up to 4.5 cubic metres per minute
    • Optional - Rain Cap 3902867910

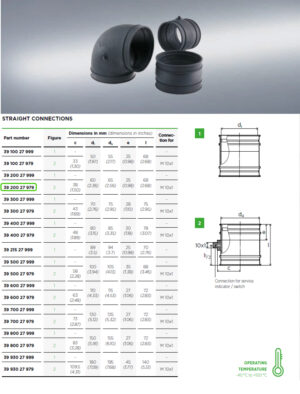

    • Optional - Straight Connector 3920027999, 3920027979

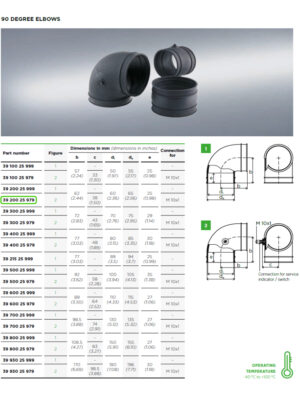

    • Optional - 90 degree Elbow 3920025999, 3920025979
    • Small/large dust valve (not fitted) - 4520017997

EuroPiclon Advantages

• Long service life through integrated pre-separation
• Corrosion-free housing made from plastic
• Cr(VI)-free components
• Environmentally-friendly and economical disposal through filter elements which are metal-free and fully incinerable Flexible adaptation through separate bracket
• Standard wire clamp fasteners for easy change of filter elements without need for tools
