Mann + Hummel Metal 90 Degree Elbow 90mm Bend for Air Filter Installations 3900025153

Description

Specifications of 3900025153

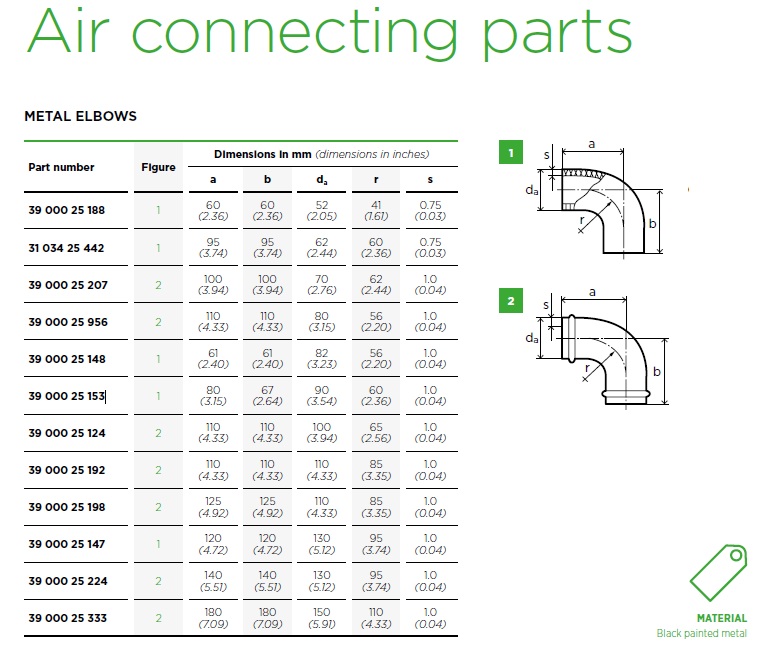

See the secondary image for dimension letters:

• Dimension A = 80mm
• Dimension B = 67mm
• Dimension D = 90mm
• Dimension R = 60mm
• Dimension S = 1.0mm

Material = Black Painted Metal

What is 3900025153?

This part is a metal 90 degree elbow or bend which is commonly used in air filter housing installations. See our other parts to complete your air filter housing setup.
