Description
Picolino Silencer (Part No. 4404087996) Product Specifications
- Up to 2.0 cubic metres per minute
- Inlet Port: 71mm ID
Elements used in this Picolino Silencer Housing
Main element: C 1140
Secondary element = None

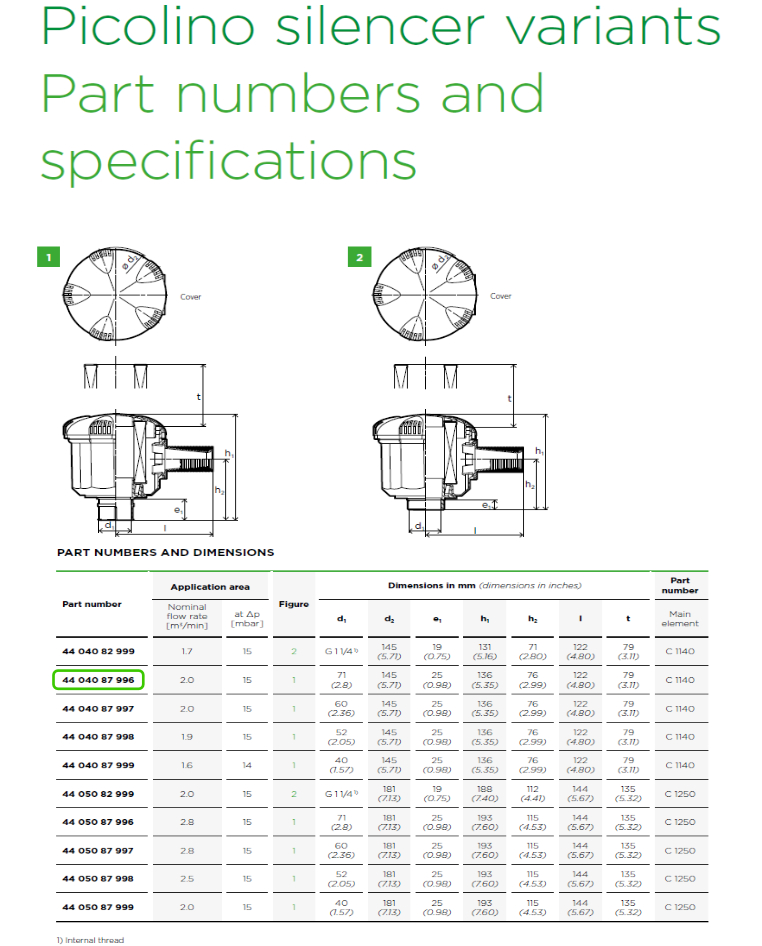

Configuration Figure 1
See pages 118 to 119 in the pdf catalogue

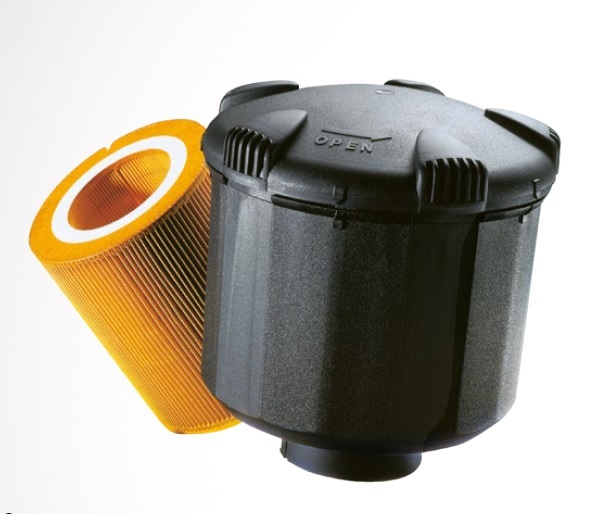

Picolino - The compact system for high requirements
The Picolino range from MANN+HUMMEL offers excellent filter characteristics in a compact installation space. The modular system consists of basic housings and a selection of adapters and filter elements which allows it to be flexibly adapted to the respective customer requirements. The Picolino range is available with a number of different connections and, for example, is used as a silencer air cleaner for low noise air intake, as an intake air cleaner for small piston compressors and small engines (e.g. lawnmowers, emergency generators, etc.) and as a two-way ventilation air cleaner for gearboxes and liquid tanks.
Picolino Advantages
- Economic air cleaner system through combination of standard parts
- Variable modular system for excellent flexibility
- Easy element change without tools
- Corrosion-free, robust housing through use of plastic reinforced with glass fiber
- Cr(VI)-free components
- Temperature-resistant to +120C (short-term)
- Environmentally-friendly and economical disposal through filter elements which are metal-free and fully incinerable
- Radial seal with elastomer end plates
