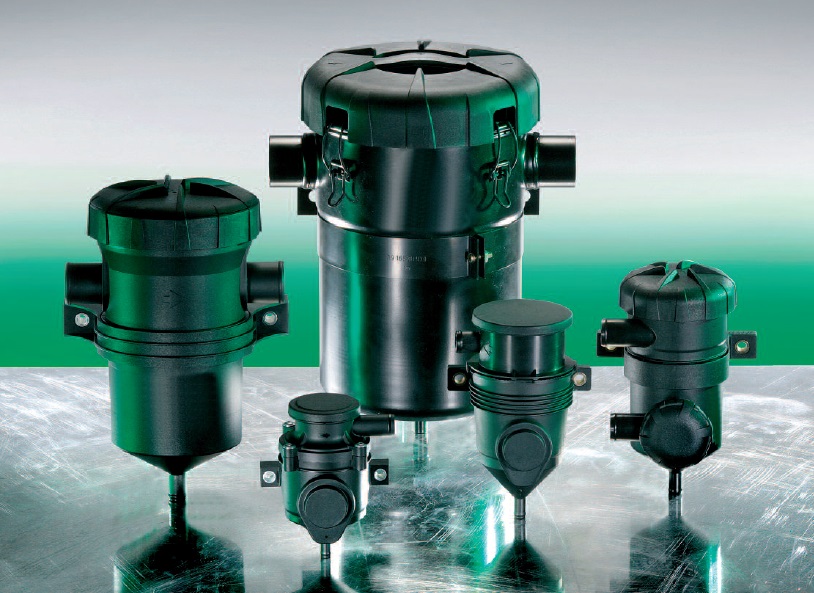

Mann-Filter Provent¹ 150 Crankcase Breather 3931070870

Description

Mann-Filter Provent¹ 150 Crankcase Breather 3931070870 Product Specifications

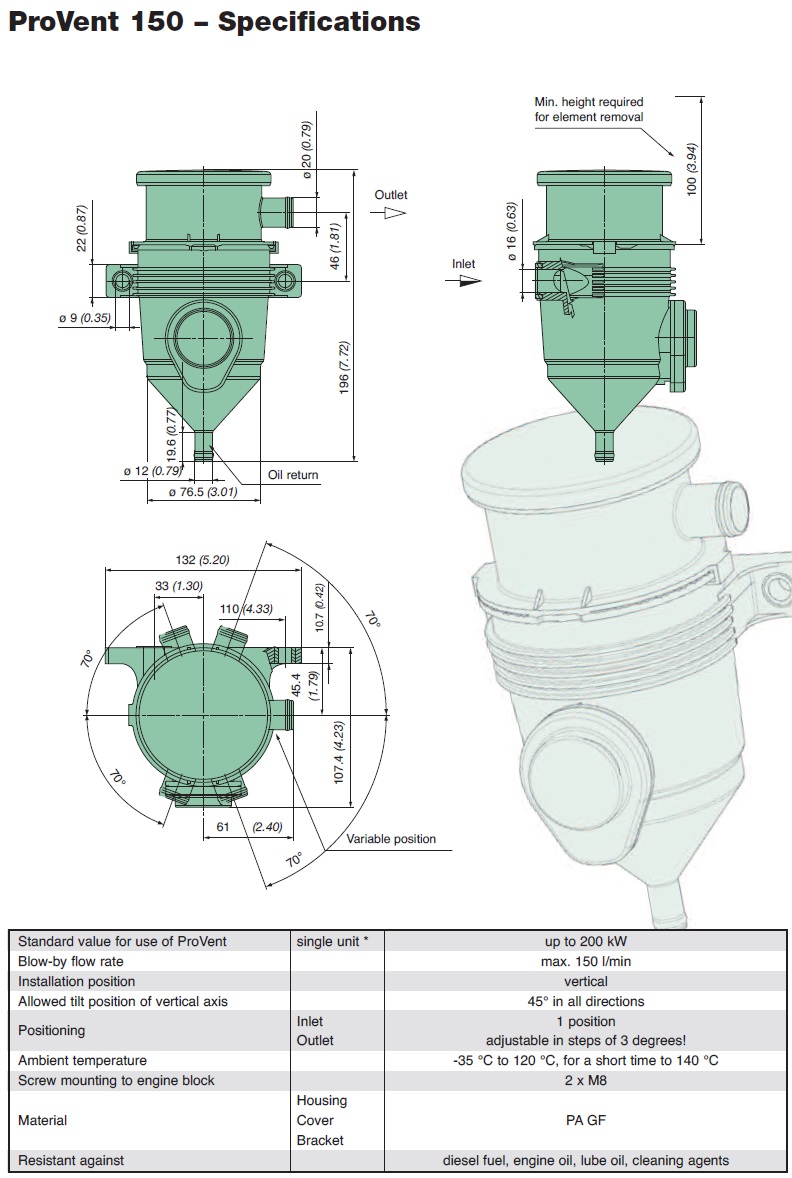

Provent¹ 3931070870 Dimensions (mm)

This model comes with a pressure relief valve
Height - 196.0
Max Diameter - 132.0
Inlet & Outlet - 20.0
Blow-by inlet to housing - REAR

Related to:

Replacement element LC 7201 X
See pages 4 & 5 in the Mann Provent Catalogue

Mann + Hummel Provent¹ Information

The ProVent 150 is a compact crankcase ventilation unit for engines up to 200 kW and is characterized by the following advantages:

• Ultra-compact design
• Up to 150 l/min blow-by gas
• Equipped as standard with high-efficiency medium
• Pressure regulation
• Available with by-pass or pressure-relief valve
• Suitable for use as an open or closed CCV
• Use of two ProVent 150 in parallel possible
• Protection against incorrect insertion of replacement element through symmetrical design
• Check valve for oil return available as option (recommended)
• Cover position adjustable in steps of 3 degrees
