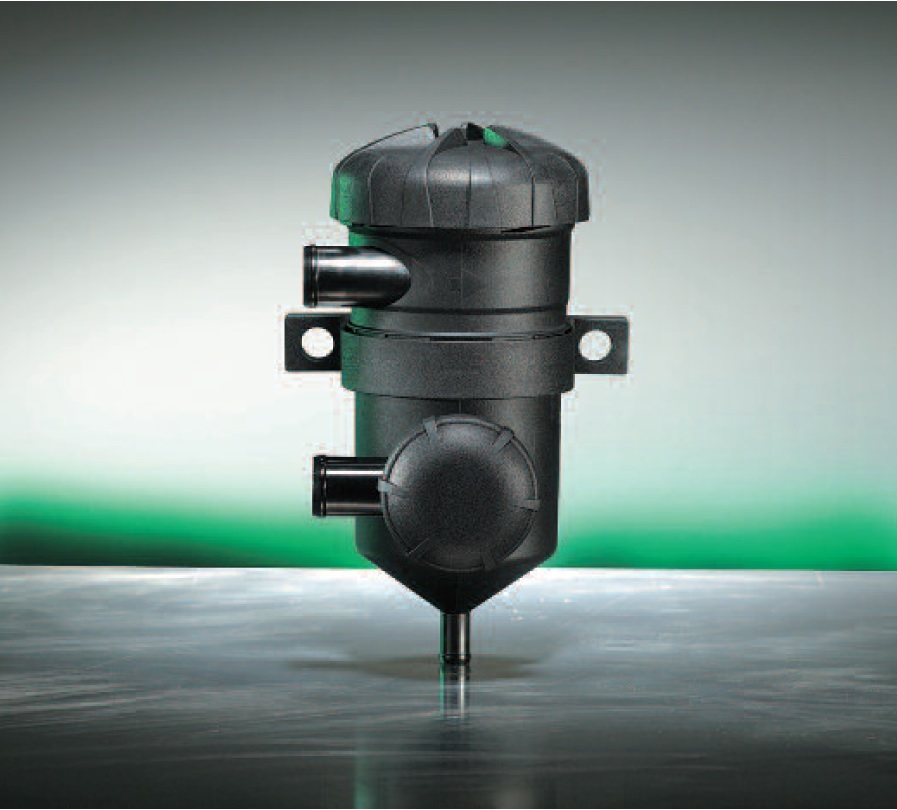

Mann-Filter Provent¹ 100 Crankcase Breather 3931070793

Description

Mann-Filter Provent¹ 100 Crankcase Breather 3931070793 Product Specifications

Provent¹ 3931070793 Dimensions (mm)

This model comes with a bypass valve
Height - 156.0
Max Diameter - 129.3
Inlet & Outlet - 20.0
Blow-by inlet to housing - RIGHT

Related to:

Replacement element LC 7001
See pages 4 & 5 in the Mann Provent Catalogue

Mann + Hummel Provent¹ Information

The Provent¹ 100 is designed to offer compact crankcase ventilation for engines up to 100 kW and is characterized by the following advantages:

• Up to 100 l/min blow-by gas
• Compact design suitable for fitting in tight installation spaces
• Integrated pressure regulation for crankcase
• High-efficiency medium
• Available with by-pass valve or pressure-relief valve
• Suitable for open or closed CCV
• Use of two ProVent 100 in parallel possible
• Check valve for oil return available as option (recommended)
• Symmetrical element design protects against incorrect insertion
