Description
Technical Specifications
The W712 hydraulic filter replacement is a premium hydraulic oil filter designed for superior
engine protection and performance. With precise 76mm diameter and 79mm height
dimensions, this filter ensures optimal fit and filtration efficiency.
Key Features:
- High-quality filtration media for maximum contaminant removal
- Durable construction for extended service life
- 3/4-16 UNF thread specification for secure installation
- Compatible with multiple OEM part numbers including AC DELCO variants
Filter type: Oil Filter
GTIN code: 4011558700508

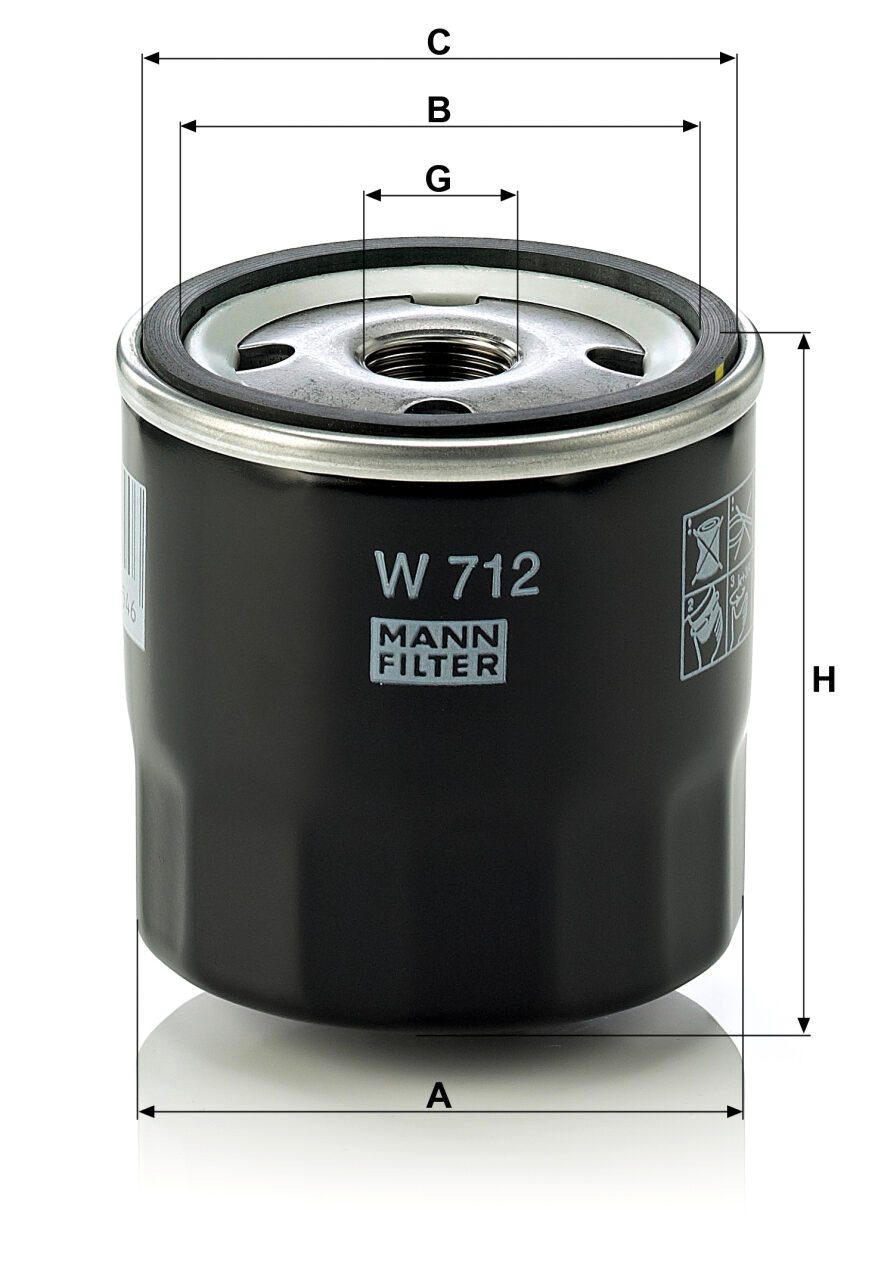

Dimensions (mm)
A = 76 mm
B = 62 mm
C = 71 mm
G = 3/4-16 UNF
H = 79 mm
Why choose Mann W712 Filter?
MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.
Installation Instructions
1. Ensure system is depressurized
2. Remove old filter using appropriate wrench
3. Clean filter mounting surface
4. Apply thin layer of clean oil to gasket
5. Install new W712 filter hand-tight plus 3/4 turn
Compatible Applications, OEM Numbers and Alternative Brands
AC DELCO SD, AC DELCO X15, AC DELCO X20, AC DELCO X4130E, AL-FILTERS AL28, AL-FILTERS AL64, ALCO SP828, ALCO SP835, ALCO SP942, AMC FOF10199, AMC FOF10212, AP FILTERS AP1010, AP FILTERS AP63000A, AP FILTERS AP76201A, AP LOCKHEED LK1010, ARMAFILT O76840, ASAS SP421, ATMOS 627960094100, AUTOPART FOE030, AVS AUTOPARTS Z103, BECKER-KOMPRESSOREN 76530105000, BEDFORD 7884256, BEDFORD 7965051, BEDFORD 7973235, BEDFORD 7973429, BEDFORD 7984256, BLUEPRINT ADG02104, BOSCH (KSN) P2056, BOSCH (KSN) P3901, BOSCH 0451102001, BOSCH 0451102056, BOSCH 0451102901, BOSCH 0451103021, BOSCH 0451103026, BOSCH 0451103049, BOSCH 0451103127, BOSCH 045110312730N, BOSCH 0451103312, BOSCH 0451103901, BOSCH 0986AF1025, BOSCH 1451103127, BOSCH 9450732010, BRITISH LEYLAND 12G2400, BRITISH LEYLAND 13H9090, BRITISH LEYLAND 13H9104, BRITISH LEYLAND BHA4952, BUSCH 0531000002, CARELLO 41367000, CHAMP / CHAMP INTERNATIONAL LS60, CHAMP / CHAMP INTERNATIONAL SD3, CHAMPION C103, CHAMPION C103606, CHAMPION COF102103S, CHEVRON 5520275, CHEVRON 5521141, CITROEN MLS000155, CLAAS 0006568340, CLAAS 06568340, CLEAN DO215, COMLINE EOF022, COMPAIR 982621009, COOPERS AZL027, COOPERS Z25, COOPERS Z35, COOPERS Z519, COOPERSFIAAM FP4531, COOPERSFIAAM FT4531, COOPERSFIAAM FT4531A, COOPERSFIAAM FT4531CS, CROSLAND 306, CROSLAND 573, CROSLAND 576, DELPHI FX0004, DEUTZ AG / DEUTZ-FAHR (KHD) 1163420, DEUTZ AG / DEUTZ-FAHR (KHD) A04H4123, DIAMOND FD13, DIGOEMA FILTER DGMO712, DONALDSON P551251, DONIT 431066, EATON YALE & TOWNE TROJA 440002266, ELOFIC EXL124, EUROREPAR (PEUGEOT/CITROEN) 1682279480, EUROREPAR (PEUGEOT/CITROEN) E149227, FALCOS 3800100, FIL FILTER ZP3268, FIL FILTER ZP507, FIL FILTER ZP507B, FILMAR SO8135, FILT FF219EC, FILT FF351EC, FILT FF414, FINI 048449000, FLEETGUARD/CUMMINS FILTRATION LF3310, FLEETGUARD/CUMMINS FILTRATION LF4014, FLEETGUARD/CUMMINS FILTRATION LF42500, FOMOCO 1462805, FOMOCO 1555370, FOMOCO 631M6714AA, FOMOCO 741M6714BA, FOMOCO A690X6A692RA, FOMOCO A700X6714AA, FOMOCO A760X6714KA, FORD 1457512, FORD 1462805, FORD 1498014, FORD 1536304, FORD 1553370, FORD 5002530, FORD 5003329, FORD 5003930, FORD 5003968, FORD 5004926, FORD 5011782, FORD 5013143, FORD 5013319, FORD 6041176, FORD A700X6714AA, FORD A760X6714KA, FRAD 223901110, FRAM PH966, FRAM PH966B, FRAM PH966B1, FRAM PH966B11, GENERAL MOTORS (GM) 6438162, GENERAL MOTORS (GM) 7965051, GENERAL MOTORS (GM) 7984256, GENERAL MOTORS (GM) 90027778, GENERAL MOTORS (GM) 93156299, GENERAL MOTORS (GM) 93156958, GIESSE CLH3871, GIESSE CLH4101, GIESSE CLH801, GIF-FILTER GL255, GKN MASTERPARTS MOF1X, GKN MASTERPARTS MOF2X, GOULD P321, GOULD P460, GREYFRIARS 904S, GREYFRIARS 968S, GUIOT GH966, HAKO 90168154, HALFORDS HOF203, HENGST H90W, HENGST H90W01, HIFI-FILTER (JURA FILTRATION) SO059, HOFFER 7605015, HOFFER 76050158, INNOCENTI 38186376, INTERFIL OF966, JOSVAL COMPRESSORS 5802010, KNECHT AW40, KNECHT AW52, KNECHT AW52C10, KNECHT FO318, KNECHT FO318C10, KRALINATOR L26, KRALINATOR L38, KRAMER 0003634330, KRAMER 0003634334, KRAMER 1000000555, KS KOLBENSCHMIDT 099OS, KS KOLBENSCHMIDT 50013099, KS KOLBENSCHMIDT 5001309910, LUBER-FINER LFP966, LUBER-FINER PH2821, LUBER-FINER SD3, LUCAS (LUCAS-TRW) 3711, LUCAS (LUCAS-TRW) 5578, LUCAS (LUCAS-TRW) 6447, M-FILTER (FINLAND) MH312, MAGNETI MARELLI 152071758709, MAGNETI MARELLI 71758709, MAHLE (KNECHT/MAHLE) OC21, MAHLE (KNECHT/MAHLE) OC21OF, MANITOU 105508, MANITOU G5003968, MAPCO 61028, MEAT & DORIA 15015, MEAT & DORIA 150158, MECAFILTER ELH4071, MECAFILTER ELH4089, MECAFILTER ELHA4071, MECAFILTER ELM4089, MEYLE 6140650005, MFILTER (BALTIC FILTER) TF31, MIGHTY M3614, MISFAT Z103, MONARK-DIESEL 30738026, MOTAQUIP VFL101, MOTORCRAFT EFL027, MOTORCRAFT EFL027D, MOTORCRAFT EFL027S, MOTORCRAFT EFL036, MOTORCRAFT EFL046, MOTORCRAFT EFL089, MOTORCRAFT EFL089D, MOTORCRAFT EFL089S, MOTRIO 8671002045, MULTIVAC 105866494, Muller FILTER FO54, NOITECH NO022780, OPEL 09281199, OPEL 2866477VP, OPEL 650352, OPEL 650364, OPEL 650365, OPEL 650370, OPEL 650371, OPEL 650373, OPEL 650400, OPEL 90027778, OPEL VOF136, PBR BC1044, PBR BC1112, PBR BC1346, PEUGEOT 1109C5, POWERTRAIN PMFL21, POWERTRAIN PMFL29, POWERTRAIN PMFL75, PURFLUX LS155, PURFLUX LS205, PUROLATOR L17020, PUROLATOR PC20, PUROLATOR PC20oF, PUROLATOR PC21, PUROLATOR PER28, PZL SEDZISZOW PP47, QUINTON HAZELL QFL0029, RENAULT 7701415069, ROVER 12G2400EVA, RYCO Z82, SAVARA 262530, SAVARA 92800511, SAVARA 92802311, SAVARA 92805911, SAVARA 92805917, SAVARA SO059, SCHUPP / SF FILTER SP4380, SCT SM109, SOFIMA S4500R, SOPARIS CV314, SOTRAS SH8227, STANDARD AIR SH8227, STEYR-DAIMLER-PUCH 5081070030, TECALEMIT FB2063, TECALEMIT FB2099, TECNECO OL28, TECNECO OL54, TECNOCAR R54, TEHO FILTER 4006, TEHO FILTER OK6, TEXACO TE102, TJ FILTERS FB2099, TJ FILTERS FB5312, TUTELA (WEBER) 01, UFI 2310300, UNICO LI779, UNIPART GFE117, UNIPART GFE139, UNIPART GFE148, UNIPART GFE166, UNIPART GFE191, V T E 94AP, VAICO 400080, VAICO V400080, VALEO 586068, VAUXHALL 650364, VAUXHALL 650365, VAUXHALL 6696776, VAUXHALL 7884256, VAUXHALL 7965051, VAUXHALL 7973235, VAUXHALL 7973429, VAUXHALL 7984256, VAUXHALL 90027778, VAUXHALL 93156299, VAUXHALL VOF136, VIACO 400080
