WIX WF10524 Fuel Filter

Description

WIX WF10524 Fuel Filter

WIX HD Fuel Filters use very good material that works well for things like medium and big lorries, farms, building sites, mines, and other machines WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions

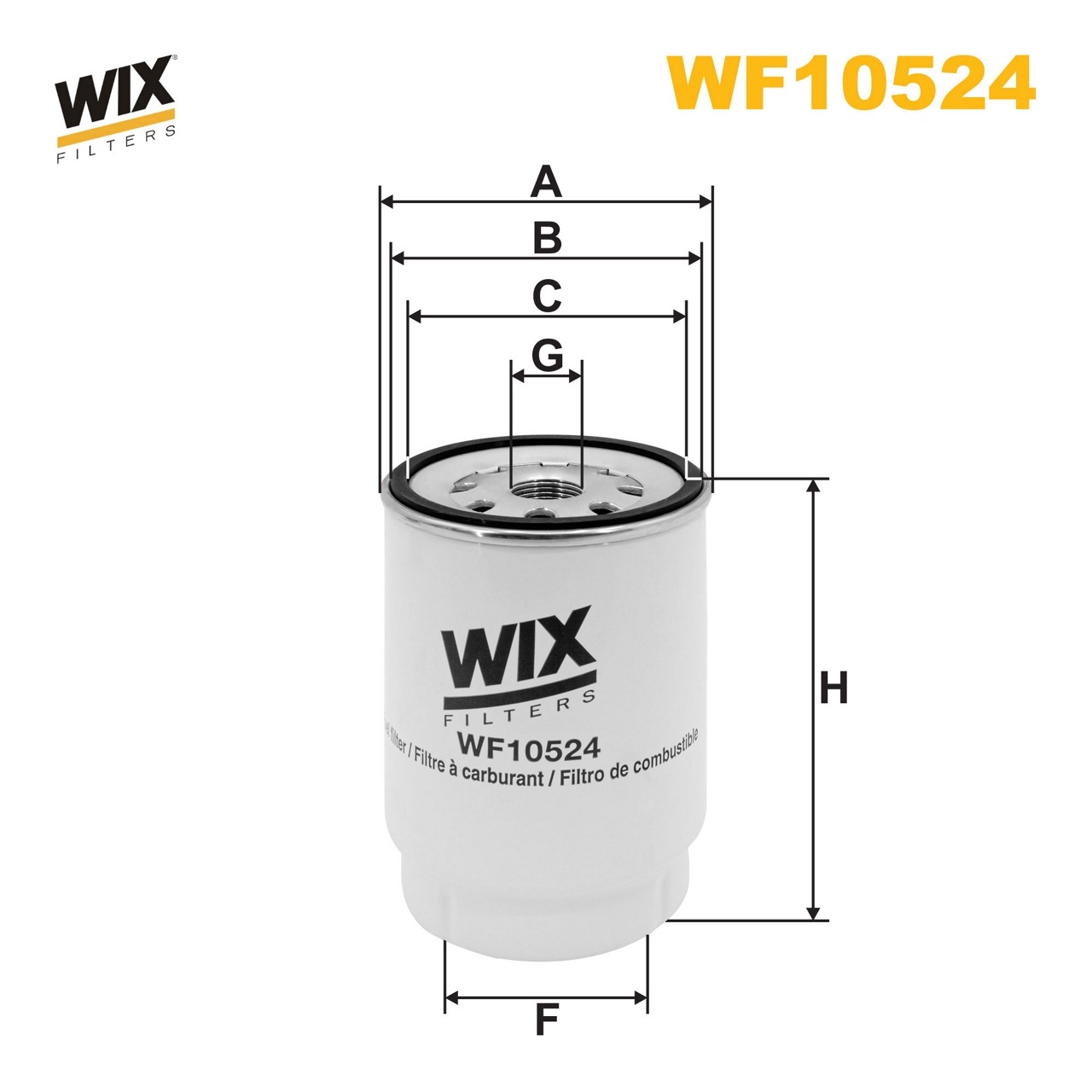

Technical Specifications

• Outer diameter 1 (A) = 110 mm
• Inner diameter 1 (B) = 103 mm
• Inner diameter 2 (C) = 93 mm
• Thread size 1 (F) = S80x3
• Thread Size (G) = 1-12UNF-1B
• Height (H) = 151 mm
• Filter with anti-drain valve: No
• Filter with by-pass valve: No
• Thread Size: 1-12 UNF-1B

Primary Application

• M.A.N TGL/TGM (05-), TGS/TGX (07-)
