WIX WF8245 Fuel Filter

Description

WIX WF8245 Fuel Filter

WIX Fuel Filters protect the engine well when driving normal or very hard WIX Fuel Filters offer high-quality, high-efficiency media specific to the application and fuel type

Technical Specifications

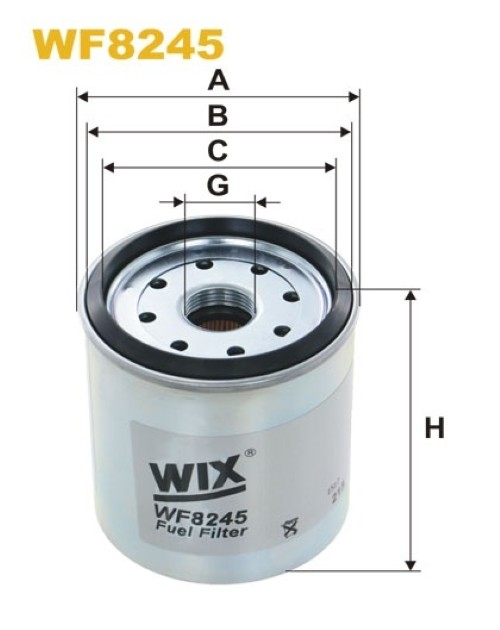

• Dimensions: Outer diameter 1 (A) = 97 mm; Inner diameter 1 (B) = 90 mm; Inner diameter 2 (C) = 80 mm; Thread size 1 (F) = S80x2.5; Thread Size (G) = 1-14UNF; Height (H) = 107 mm
• Filter with anti-drain valve: No
• Filter with by-pass valve: No
• Product shape group : Searchable dimensions: Outer diameter / length,Inner diameter at the top / width,Inner diameter at the bottom,Inlet / thread size,Outlet / thread size,Height,Non-return valve,Bypass valve
• Height: 107
• Inner diameter 1: 90
• Inner diameter 2: 80
• Outer diameter 1: 97
• Thread Size: 1-14 UNF
• Thread size 1: S 80 x 2.5

Primary Application

• Chrysler Grand Voyager, Voyager (ES)
